180 degree Peel Test Fixture
IEC 249-1 [ 1982 ] [Base materials for printed circuits. Part 1: Test methods] (corresponding part only)
IEC 326-2 [ 1990 ] [Printed boards. Part 2 Test methods] (corresponding part only)
ISO 29862 [ 2007 ] [Self adhesive tapes-Determination of peel adhesion properties] (corresponding part only)
ASTM D3330 [ 2010 ] 「Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape」(corresponding part only)
JIS Z0237 [ 2022 ] [Testing methods of pressure-sensitive adhesive tapes and sheets] (corresponding part only)
This testing system is designed for 180 degree peel (adhesion) test of such as tape.
The capacity is up to 200N.
The statistic, such as average value, is calculated and converted to unit of adhesive strength by the graphing software.
inquiry number
1P2005A
Present the “inquiry number” below when you contact us, for prompt assistance.
Force-Displacement unit
FSA-0.5K2-200N-L
1
Downloadable Graphing Software Option
-NEXT
1
Optional Attachment
P180-200N
1
Optional Attachment
FC-20
1
Download Card Advanced
Peel Testing Module 1
1
IEC 249-1 [ 1982 ] [Base materials for printed circuits. Part 1:Test methods] (corresponding part only)
IEC 326-2 [ 1990 ] [Printed boards. Part 2 Test methods] (corresponding part only)
Japanese Pharmacopoeia [ 18th Edition ] [6.12 Methods of Adhesion Testing 3.1.2.1 180 peel adhesive testing] (corresponding part only)
JIS C5016 [ 1994 ] [Test methods of copper-clad laminates for flexible printed wiring boards] (corresponding part only)
A purchase of download cards and a prior user/product registration on IMADA Connected are required to download Force Recorder Next series and chargeable additional functions.
To ensure enough peel length, long stroke model of motorized test stand is recommended.
If your sample width is over 20mm, you may need another wide model of film grip.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
This testing system is designed for 180 degree peel (adhesion) test of such as tape.
The capacity is up to 200N.
The statistic, such as average value, is calculated and converted to unit of adhesive strength by the graphing software.
inquiry number
1P2005B
Present the “inquiry number” below when you contact us, for prompt assistance.
Force-Displacement unit
FSA-0.5K2-200N-2L
1
Downloadable Graphing Software Option
-NEXT
1
Optional Attachment
P180-200N
1
Optional Attachment
FC-20
1
Download Card Advanced
Peel Testing Module 1
1
JIS Z0237 [ 2022 ] [Testing methods of pressure-sensitive adhesive tapes and sheets] (corresponding part only)
ISO 29862 [ 2007 ] [Self adhesive tapes-Determination of peel adhesion properties] (corresponding part only)
ASTM D3330 [ 2010 ] [Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape] (corresponding part only)
A purchase of download cards and a prior user/product registration on IMADA Connected are required to download Force Recorder Next series and chargeable additional functions.
To ensure enough peel length, long stroke model of motorized test stand is recommended.
If your sample width is over 20mm, you may need another wide model of film grip.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
This testing system is designed for 180 degree peel (adhesion) test of such as tape.
It offers a simple solution of peel test up to 200N.
inquiry number
1P2005C
Present the “inquiry number” below when you contact us, for prompt assistance.
Digital Force Gauge
DST-200N
1
Motorized Test Stand
MX-500N-L
1
Optional Attachment
P180-200N
1
Optional Attachment
FC-20
1
To ensure enough peel length, long stroke model of motorized test stand is recommended.
If your sample width is over 20mm, you may need another wide model of film grip.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
180 degree peel test of adhesives fixing samples with a breadboard and clamps such as printed circuit board.
Up to 200N.
The average value is automatically calculated by the graphing software.
inquiry number
1P2007A
Present the “inquiry number” below when you contact us, for prompt assistance.
Digital Force gauge
ZTS-200N
1
Motorized Test Stand
MX2-500N-L
1
Optional Attachment
P180-200N-BB
1
Optional Attachment
FC-21U
1
Optional Cable
CB-528
1
Optional software
Force Recorder Standard
1
IEC 249-1 [ 1982 ] [Base materials for printed circuits. Part 1:Test methods] (corresponding part only)
IEC 326-2 [ 1990 ] [Printed boards. Part 2 Test methods] (corresponding part only)
JIS C5016 [ 1994 ] [Test methods of copper-clad laminates for flexible printed wiring boards] (corresponding part only)
To ensure enough peel length, long stroke model of motorized test stand is recommended.
Wide width model of film grip is necessary if the sample width is over 20mm.
We recommend 90 degree peel test for these standards. 180 degree peel test is acceptable if 90 degree peel is impossible.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

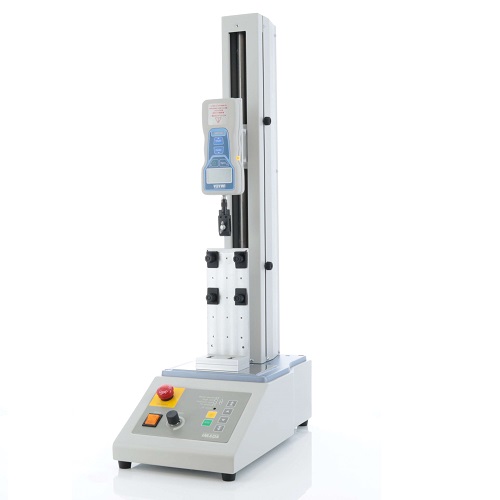

180 degree peel test of adhesives fixing samples with a breadboard and clamps such as printed circuit board.
Up to 200N.
Simple test.
inquiry number
1P2007B
Present the “inquiry number” below when you contact us, for prompt assistance.
Digital Force gauge
DST-200N
1
Motorized Test Stand
MX-500N-L
1
Optional Attachment
P180-200N-BB
1
Optional Attachment
FC-21U
1
To ensure enough peel length, long stroke model of motorized test stand is recommended.
Wide width model of film grip is necessary if the sample width is over 20mm.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
