Plug-in for Force Recorder Next Series (For Pressure/Stretchability Measurement)

Pressure/Strechability Measurement Module

Description Relevant Information and Materials Relevant Products

CONTACT

Force Measurement IMADA
PRODUCTS
Additional Chargeable Function for Software
Pressure/Strechability Measurement Module

Description Add to favorites

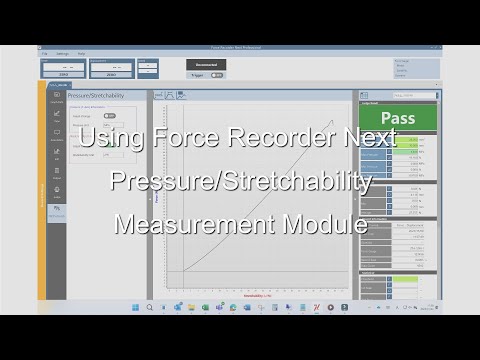

Pressure/Strechability Measurement Module Display Image

Plug-in software

Downloadable product

Pressure

Stretchability

The Pressure/Stretchability Measurement Module is a plug-in for Force Recorder Next Series that enables conversion from force to pressure and from displacement to stretchability and display the results. When perform compression/tension test after setting a sample cross-sectional area and contact area of attachment to sample, the measurement result (force value) will be converted and displayed as the force value per unit area (=pressure). Also, when perform compression/tension test after setting the initial length/height of the sample, the displacement amount willbe converted and displayed as the stretchability/stretchability rate. The Y-axis (pressure ⇔ load) and X-axis (elongation ⇔ displacement) of the graph can also be switched. Pressure/Stretchability conversion results can be output to a dedicated report template, CSV, etc.
Preset conditions can be registered prior to the start of measurement, facilitating smooth switching of conditions to suit the sample and improving efficiency. *Download Card Basic is required.

Feature

Convert the measurement force-displacement value when sample is compressed/pulled into the force value per unit area and display the conversion data with graph.
Convert the measurement result of stretch/contraction amount when sample is compressed/pulled into the stretchability/stretchability rate and display the conversion data with graph. This allows us to determine the applied force and the degree of deformation independent of the sample size.
Easy to output the pressure/ stretchability measurement data of the Compression/Tension Test via dedicated report templates, CSV, etc.
