Advanced Type Vertical Motorized Test Stand

EMX series

  1. Force Measurement IMADA
  2. PRODUCTS
  3. Motorized Test Stands
  4. EMX series

Description Add to favorites

EMX-500N EMX-500N

EMX-1000N EMX-1000N

EMX-500N

EMX-1000N

Lo-Mid Force

Hi Rigidity

Wide Speed Range

Ext I/O

Contact Detection

Easy Setting

Digital Speed Ctrl

Multi Function

Displacement OPT

Advanced motorized test stand has capacity of 1000N and is equipped with the highest functions. Wide range of measuring speed (0.5 to 600mm/min) and travel setting are available for more diverse and various measurement. High rigidity enables precise measurement. Equipped with a contact point detection function and a function to memorize up to 5 measurement conditions, which greatly improves measurement efficiency.

Feature

  • Achieves high repeatability with constant testing speed and angle, high rigidity (Max 0.25mm)
  • Handles various testing such as durability or compression testing with wide range speed (0.5~600mm/min), setting of testing cycles and travel distance, and timer function (pausing time)
  • Handles a wide range of testing applications to meet your requirements with options such as -FA (inner linear scale) and -L (long stroke)
  • Enhances testing efficiency and safety with I/O for external signals, allowing for communication for interlock and starting operation, etc.
  • Enhances testing efficiency with useful functions, including automatically detects contact point, operating pattern memory (up to 5 patterns) and automatic speed change at a set force value *Requires certain models of force gauge and optional cable.

User Guide Videos

Measurement (Firmware version 2.0 or later)

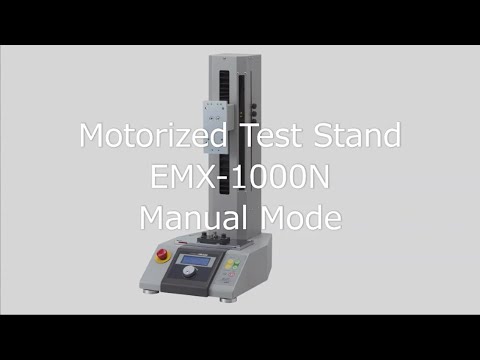

Manual Mode

Setting (Firmware version 2.0 or later)

Save/Lock the Operating Conditions

Mounting (Firmware version 2.0 or later)

Mount Various Products

Measurement (Firmware version 2.0 or later)

Apply Set Load Value One Time or Repeat (*Requires an optional cable)

Measurement (Firmware version 2.0 or later)

Force-Displacement Measurement (*Requires an optional cable)

Measurement (Firmware version 2.0 or later)

Use Contact Point Detection Function (*Requires an optional cable)

Measurement (Firmware version 2.0 or later)

Hold the Specified Load Value Range for Set time (*Requires an optional cable)

Measurement (Firmware version 2.0 or later)

Use Break Detection Function (*Requires an optional cable)

Data record (Firmware version 2.0 or later)

Improve Testing Efficiency

Troubleshooting

Handling Methods for Problems of Power On / Display Light On

Troubleshooting

Handling Methods for Head Movement /Error Message

Setting (Firmware earlier version than 2.0)

Manual Mode

Setting (Firmware earlier version than 2.0)

Store the Testing Conditions

Mounting (Firmware earlier version than 2.0)

Mount Various Products

Measurement (Firmware earlier version than 2.0)

Apply Set Load Value One Time or Repeat (*Requires an optional cable)

Measurement (Firmware earlier version than 2.0)

Hold the Specified Load Value Range for Set time (*Requires an optional cable)

Data record (Firmware earlier version than 2.0)

Improve Testing Efficiency
