Variable Weight Reciprocating Friction Test Jig

VWF-10N-J

VWF-10N-J

Description Relevant Information and Materials Example of Product Configuration Relevant Products Measurement Example Videos User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Friction Attachments
  4. VWF-10N-J

Description Add to favorites

VWF-10N-J VWF-10N-J

VWF-10N-J

COF Test

Variable Weight

Lo-Mid Force

VWF-10N-J is a friction jig for MH2-500N to conduct reciprocating friction tests with various samples. You can place a weight on the plate to generate vertical force. *Weight is not included.

Feature

  • Measures Coefficients of Friction (COF) of a flat specimen and a contactor
  • Handles various samples using different Contactor Holders
  • Available to create vertical force by weight and to conduct reciprocating friction tests
  • Optional Software available for automatic calculation of static and average kinetic COF

Example of Product Configuration

VWF-10N-J（2）

VWF-10N-J

1V2001A
1V2001B

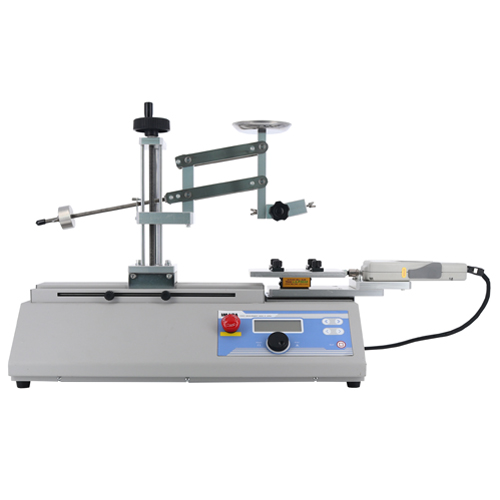

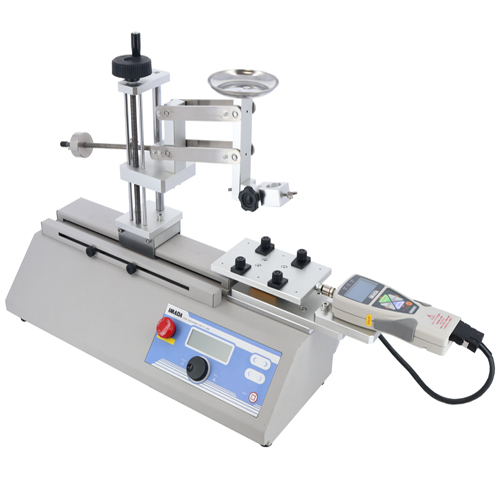

Configuration 1 for VWF-10N-J1V2001A

Features

Jig for Coefficients of Friction test of a flat specimen and contactor

Coefficient of Friction Measurement for Writing Materials

Available to create vertical force by weight and reciprocating friction

The graphing software automatically calculates static and average kinetic coefficients of friction.

inquiry number

1V2001A

Present the “inquiry number” below when you contact us, for prompt assistance.



Add to favorites
CONTACT
Product used

Digital Force gauge

ZTS-5N

1

Motorized Test Stand

MH2-500N

1

Optional Attachment

VWF-10N-J

1

Optional Attachment

VWF-STH-VA

1

Optional cable

CB-528

1

Optional Software

Force Recorder Next Standard

1

Download Card Basic

Friction Testing Module

1

Cautions

Weight is not included
Test speed should not surpass 300mm/min to limit noises caused by vibration in the test result
A purchase of download cards and a prior user/product registration on IMADA Connected are required to download Force Recorder Next series and chargeable additional functions.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Add to favorites
CONTACT

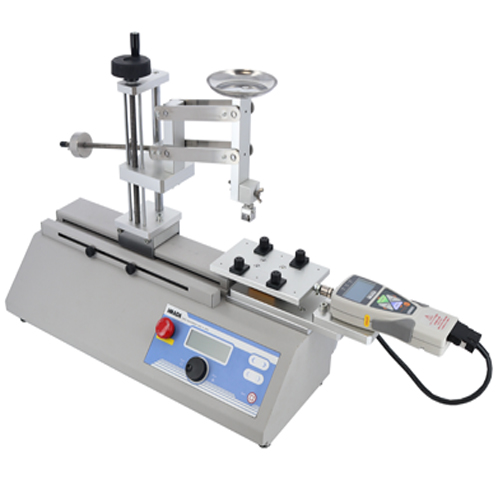

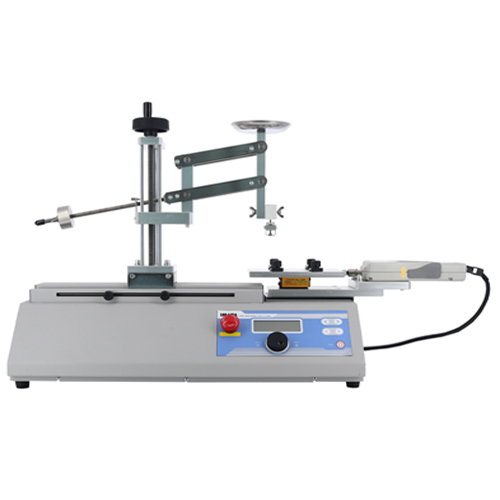

Configuration 2 for VWF-10N-J1V2001B

Features

Jig for Coefficients of Friction test of a flat specimen and contactor

Coefficient of Friction Test for Lubricant(Ball-on-Plate Test)

Available to create vertical force by weight and reciprocating friction

The graphing software automatically calculates static and average kinetic coefficients of friction.

inquiry number

1V2001B

Present the “inquiry number” below when you contact us, for prompt assistance.



Add to favorites
CONTACT
Product used

Digital Force gauge

ZTS-5N

1

Motorized Test Stand

MH2-500N

1

Optional Attachment

VWF-10N-J

1

Optional Attachment

VWF-BAH6

1

Optional cable

CB-528

1

Optional Software

Force Recorder Next Standard

1

Download Card Basic

Friction Testing Module

1

Cautions

Weight is not included
Test speed should not surpass 300mm/min to limit noises caused by vibration in the test result
A purchase of download cards and a prior user/product registration on IMADA Connected are required to download Force Recorder Next series and chargeable additional functions.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Add to favorites
CONTACT

User Guide Videos

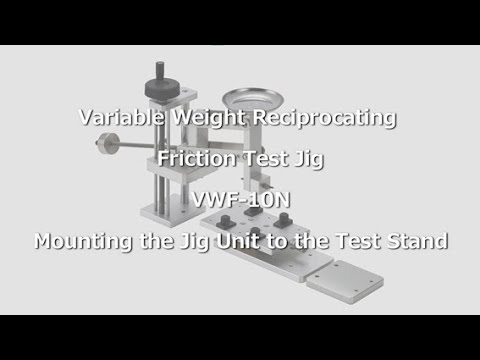

Mounting

Mount to the Test Stand

Mounting

Install Various Contactor Holders

Measurement

Measuring procedures

Measurement

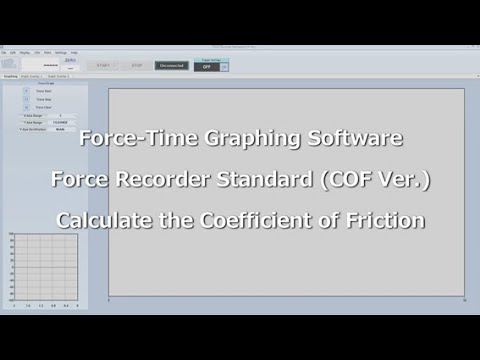

Calculate the Coefficient of Friction with CD version optional software
