Tabletop Force Gauge Calibration Unit

TFCU series

TFCU series

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Tabletop Force Gauge Calibration Unit
  4. TFCU series

Description Add to favorites

TFCU-500N TFCU-500N

TFCU-Z TFCU-Z

TFCU-500N

TFCU-Z

Calibration

Daily inspection

A tabletop calibration unit for checking measurement accuracy of force gauges. The accuracy of your force gauges can be checked by comparing its indicated value with that of a Precision Model Mechanical Force Gauge PSM series as a calibration standard. It is suitable for daily inspection and in-house calibration of force gauges.

Feature

  • For compression and tension forces and accuracy checks up to 500N.
  • Applicable to Digital and Mechanical force gauges.
  • Smooth and sensitive movements and easy position adjustments with the handle operation.
  • Enable to check the accuracy of force gauges with different ranges by replacing the calibration standard.
  • Calibration services for IMADA force gauges at IMADA Calibration Laboratory also available. Please contact us for details.

User Guide Videos

Mounting

Force Gauge Installation

Measurement

Compression Calibration

Measurement

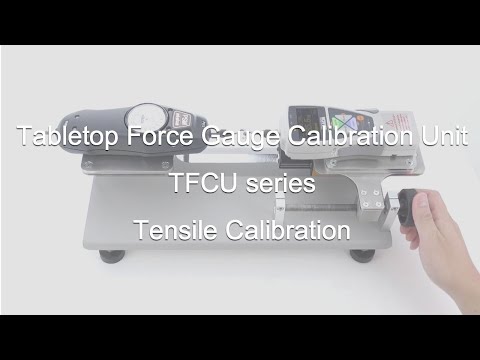

Tensile Calibration

Usage tips

Tips and Adjustments for More Accurate Reading of Force Values on PSM
