Toggle Clamp for DT-TB

TC-DT-5N

TC-DT-5N

Description Relevant Information and Materials Relevant Products
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Torque Attachments
  4. TC-DT-5N

Description Add to favorites

TC-DT-5N TC-DT-5N

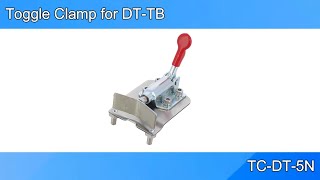

TC-DT-5N Testing image TC-DT-5N Testing image

TC-DT-5N

TC-DT-5N Testing image

For DTXS/A

One-touch

For 2-5N-m Range

TC-DT-5N is toggle clamp attachment for the standard table DT-TB for screw cap torque tester DTXS/DTSA series. The clamp can be tightened or loosened by simply operating the one-touch lever. It enhances testing efficiency in situations where many samples of the same size and shape are measured, such as quality control, by eliminating the need to operate the handle.

Feature

  • Toggle clamp attachment for the standard table DT-TB for the screw cap torque tester DTXS/DTSA series
  • Enable to replace the samples by pulling up the lever when testing multiple samples of the same size and shape
  • Improve measurement efficiency by reducing the time for sample setting
  • Reduces finger and wrist fatigue of the operator due to its lever.
  • Offers custom-made solutions to suit your testing samples and requirements

Relevant Information and Materials

Attachments for DTXS/DTXA series
