Torque-Angle Measurement Unit

TAA-ACMTS-TB series

TAA-ACMTS-TB series

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Torque-Angle Measurement Unit
  4. TAA-ACMTS-TB series

Description Add to favorites

TAA-ACMTS-10N-TB TAA-ACMTS-10N-TB

Bundles

Wide Selection

Precise Analysis

Torque Angle Graph

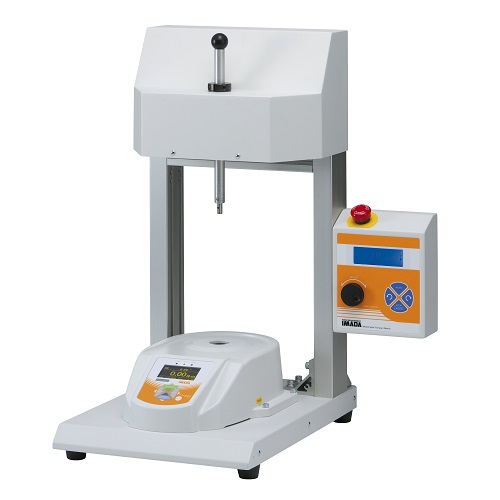

TAA-ACMTS-TB series is torque-angle measurement unit with 10N-m(1000N-cm) capacity. It is measurement unit for easy and accurate analysis of torque (rotating/twisting force) vs. angle. It is ideal for measurements of opening/closing torque of screw caps and torsional strength for circuit boards.

Feature

  • High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of torque
  • Offers solution for torque-angle measurement and graph using supplied software
  • Possible to control the operation by torque values and angle
  • Easy setup and no complicated wiring

User Guide Videos

Measurement

Inputting Angle/Outputting Angle

Measurement

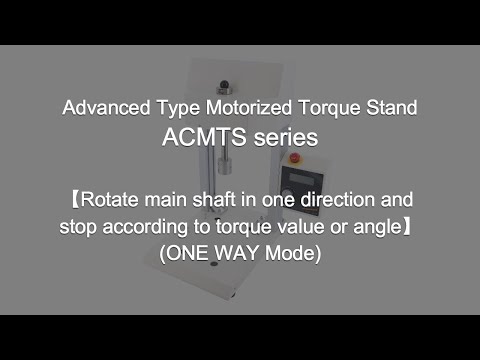

ONE WAY Mode (Operation Control with Torque Value and Angle)

Measurement

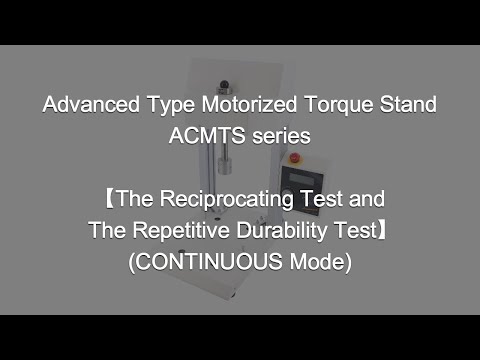

CONTINUOUS Mode (The Reciprocating Test and The Repetitive Durability Test)

Measurement

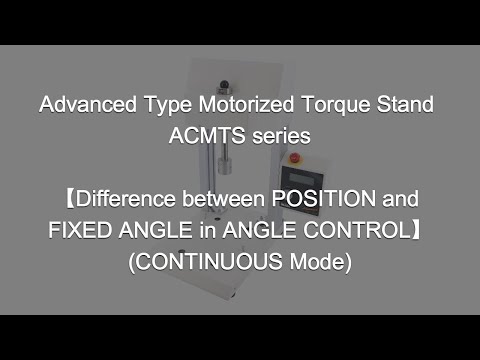

Difference between POSITION and FIXED ANGLE in ANGLE CONTROL (CONTINUOUS Mode)
