Safety Shield
ST-SS
Description Add to favorites
ST-SS

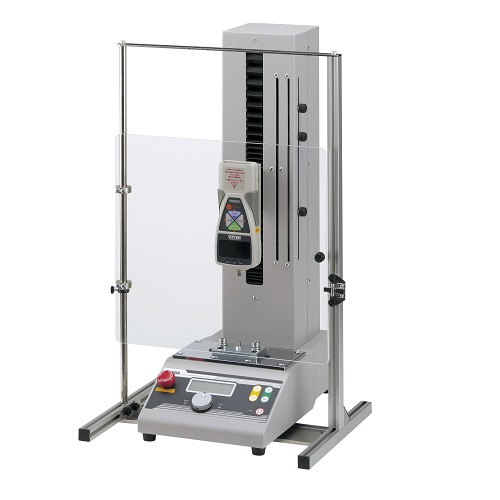

ST-SS Testing Image
Entrap Prevention
Debris Shield
Safety
ST-SS is safety shield used for a test stand. It protects operators against the dangers of sample debris during testing.
Feature
- Protects operators against the dangers of sample debris during testing
- Designed to use with a test stand
- Allows easy position adjustment by moveable panel
- Lock the panel easily by the knob and locker
- Offers custom-made services including change of panel material and resize
