Spout Pouch Cap Opening Torque Test Fixture

SPC-10N

SPC-10N

Description Relevant Information and Materials Relevant Products Measurement Example Videos User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Torque Attachments
  4. SPC-10N

Description Add to favorites

SPC-10N SPC-10N

SPC-10N Testing image SPC-10N Testing image

SPC-10N

SPC-10N Testing image

For DTXS/A

For spout pouch cap

For 2-10N-m Range

SPC-10N is spout pouch cap opening torque test fixture specialized forscrew cap torque tester DTXS/DTXA series with 10N-m(1000N-cm) capacity. It can hold samples of the width of spout neck 6mm to 26mm. It can be used for packaging beverages such as jellies and juices, as well as refill packaging for cosmetics, shampoos, detergents, etc.

Feature

  • Spout pouch cap opening torque test fixture specialized for the screw cap torque tester DTXS/DTXA series
  • Adjustable for different size of spout neck and accomodate the samples within 6 to 26 mm each in width and depth
  • Suitable for various samples such as packaging for jellies and juices, as well as refill packaging for cosmetics, shampoos, detergents, etc.
  • Realize the high efficiency in situations where many samples of the same size and shape are measured, such as quality control
  • Offers custom-made solutions to suit your testing samples and requirements

Relevant Information and Materials

Attachments for DTXS/DTXA series

Measurement Example Videos

Spout Pouch Cap Opening Torque Test

Spout Pouch Cap Opening Torque Test

User Guide Videos

Mounting

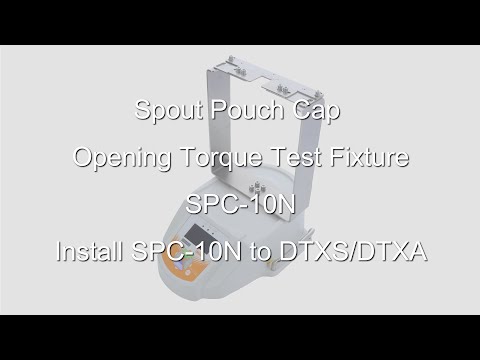

Install SPC-10N to DTXS/DTXA

Measurement

Measurement
