Plug-in for Force Recorder Next Series (For Peel Test)

Peel Testing Module

Peel Testing Module

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Additional Chargeable Function for Software
  4. Peel Testing Module

Description Add to favorites

Peel Testing Module Display Image Peel Testing Module Display Image

Plug-in software

Downloadable product

Peel Test

Peel Force Unit

The Peel Testing Module is a plug-in for Force Recorder Next Series that includes automatic calculation of a peel force conversion function and test condition presets compliant with various related standards. By setting sample width, conversion unit, and selection data in advance, the measurement results are automatically converted and displayed in the set peel force unit (e.g., N/10mm). It also displays the result of conformity judgment to the selected standard. *Download Card Advanced is required.

Feature

  • Automatically convert and display the measurement result into the set peel force unit (e.g., N/10mm)
  • Automatically determine if the measurement data conforms to the selected standard or not and displays the result.
  • Measurement conditions that conform to relevant standards for peel testing such as JIS, ISO, Japanese Pharmacopoeia, etc. are preset. It’s easy to set up conditions according to the standards.
  • User preset function helps adding arbitrary standards and registering unique measurement conditions.
  • Easy to output the measurement data of the Peel Test via dedicated report templates, CSV, etc.

User Guide Videos

Using

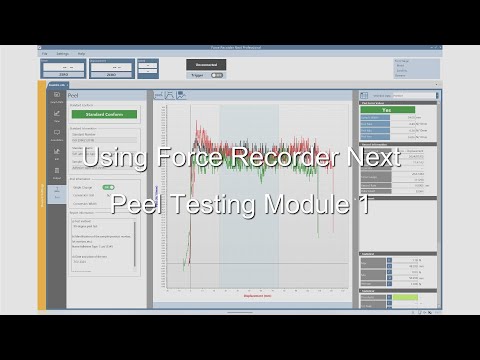

Using Force Recorder Next Peel Testing Module
