Plug-in for Force Recorder Next Professional (For Correcting Deflection of Measurement Devices)

Deflection Correction Function

Deflection Correction Function

Description Relevant Information and Materials Relevant Products
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Additional Chargeable Function for Software
  4. Deflection Correction Function

Description Add to favorites

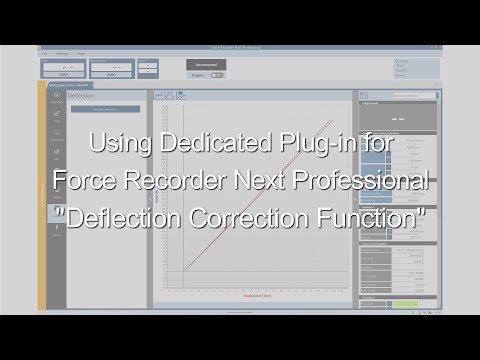

Deflection Correction Function Display Image Deflection Correction Function Display Image

Plug-in software

Downloadable product

Deflection Correction

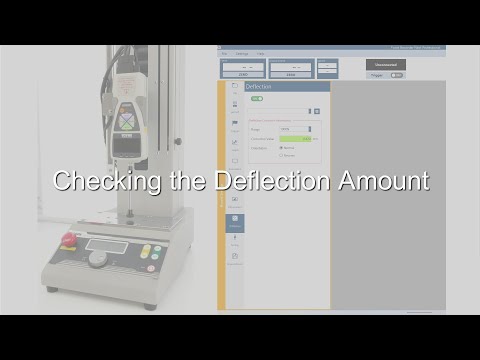

The Deflection Correction Function is a dedicated plug-in for Force Recorder Next Professional that can be used in combination with other plug-ins. With this function, the deflection amount occurred by applying a load to a force gauge, a load cell, or a test stand is corrected by the software. The more accurate displacement values are reflected in the measurement results and graphs. *Download Card Basic is required.

Feature

  • Since it can be used together with other plug-ins, stretchability and spring rate can be easily calculated according to the corrected displacement values when used in combination with the “Pressure/Stretchability Measurement Module” or the “Spring Rate Measurement Module".
  • In particular, force-displacement measurement can be performed more precisely in tests with large force and small displacement values.
  • Deflection correction information can be output via a dedicated report template or CSV etc.
