Standard Type Vertical Motorized Test Stand

MX2 series

MX2 series

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Motorized Test Stands
  4. MX2 series

Description Add to favorites

MX2-500N MX2-500N

MX2-2500N MX2-2500N

MX2-5000N MX2-5000N

MX2-500N-L MX2-500N-L

MX2-500N + DSV-50N MX2-500N + DSV-50N

MX2-500N

MX2-2500N

MX2-5000N

MX2-500N-L

MX2-500N + DSV-50N

Lo-Mid Force

Hi Force

Digital Speed Ctrl

Multi Function

Displacement OPT

Standard motorized test stand has capacity of 5000N and is versatile and desktop, providing both the ease of use and functionality. Such functions and performance that enhance measurement repeatability, as digital speed setting and mechanical strength, are standard-equipped. A timer/counter function allows for durability and repetitive test. Strong deflection rigidity enables precise measurement.

Feature

  • Achieves high repeatability with constant testing speed and position, high rigidity
  • Handles various testing such as durability or compression testing with digital setting of speed, counter function (number of tests to repeat), and timer function (pausing time)
  • Handles a wide range of testing applications to meet your testing requirements with options such as -FA (inner linear scale) and -L (long stroke)
  • Enhances testing efficiency and safety with option -CN (I/O for external signals), allowing for communication for interlock and starting operation, etc.

User Guide Videos

Mounting

Mount Various Products

Mounting

Mounting Linear Scale Unit (MX2-5000N)

Measurement

Manual Mode

Measurement

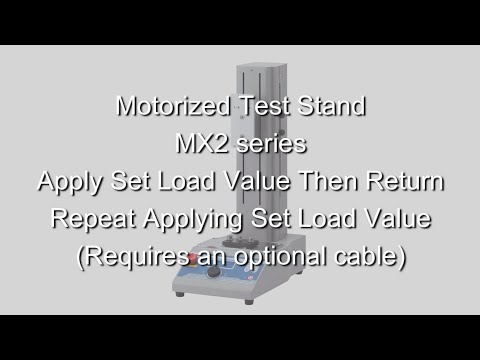

Apply Set Load Value One Time or Repeat (*Requires an optional cable)

Measurement

Hold the Specified Load Value Range for Set time (*Requires an optional cable)

Measurement

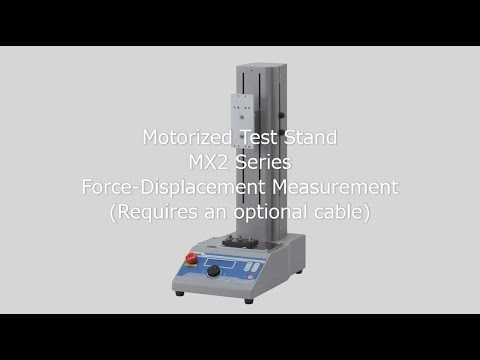

Force-Displacement Measurement (*Requires an optional cable)

Troubleshooting

Handling Methods for Problems of Power On / Display Light On

Troubleshooting

Handling Methods for Head Movement /Error Message
