Knurled Cam Grip
GP-15/30
Description Add to favorites
GP-15
GP-30
Stretch Sample
Single Touch
Fix by Winding
Lo-Mid Force
GP-15/30 is knurled cam grip with 1000N capacity. It reduces breakage of sample due to cam mechanism. It is ideal for tension testing of soft and extensible samples such as wire and plastic.
Feature
- Ideal for tension testing of soft and extensible samples such as wire and plastic
- Reduces breakage of sample due to cam mechanism
- 2 models available: for force gauge (GP-15) and for test stand (GP-30)
Relevant Information and Materials
Example of Product Configuration
GP-15
Features
For simple handheld tension strength test up to 250N.
Ideal for tension testing of soft and extensible samples.
Reduces breakage of sample due to cam mechanism.
inquiry number
1G2011A
Present the “inquiry number” below when you contact us, for prompt assistance.
Product used
Digital Force Gauge
DST-500N
1
Manual Test Stand
HV-1000N
1
Optional Attachment
GP-15
2
Cautions
Due to the cam clamp mechanism, which influences measurement of displacement in some cases.
Extensible samples require longer stroke. Therefore, you need to select a test stand which has long stroke enough for the sample.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
Features
For functional and versatile tension strength test up to 250N.
Ideal for tension testing of soft and extensible samples.
Reduces breakage of sample due to cam mechanism.

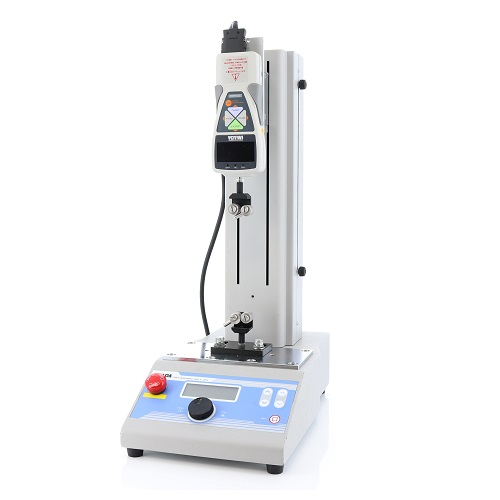

inquiry number
1G2011B
Present the “inquiry number” below when you contact us, for prompt assistance.
Product used
Digital Force Gauge
ZTS-500N
1
Motorized Test Stand
MX2-500N
1
Optional Attachment
GP-15
2
Optional Cable
CB-528
1
Cautions
Due to the cam clamp mechanism, which influences measurement of displacement in some cases.
Extensible samples require longer stroke. Therefore, you need to select a test stand which has long stroke enough for the sample.
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
