Force-Deformation Evaluation Unit

FSA-Q series

FSA-Q series

Description Relevant Information and Materials Relevant Products
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Force-Displacement Measurement Unit / Force-Deformation Evaluation Unit
  4. FSA-Q series

Description Add to favorites

FSA-Q-0.5KE-50N FSA-Q-0.5KE-50N

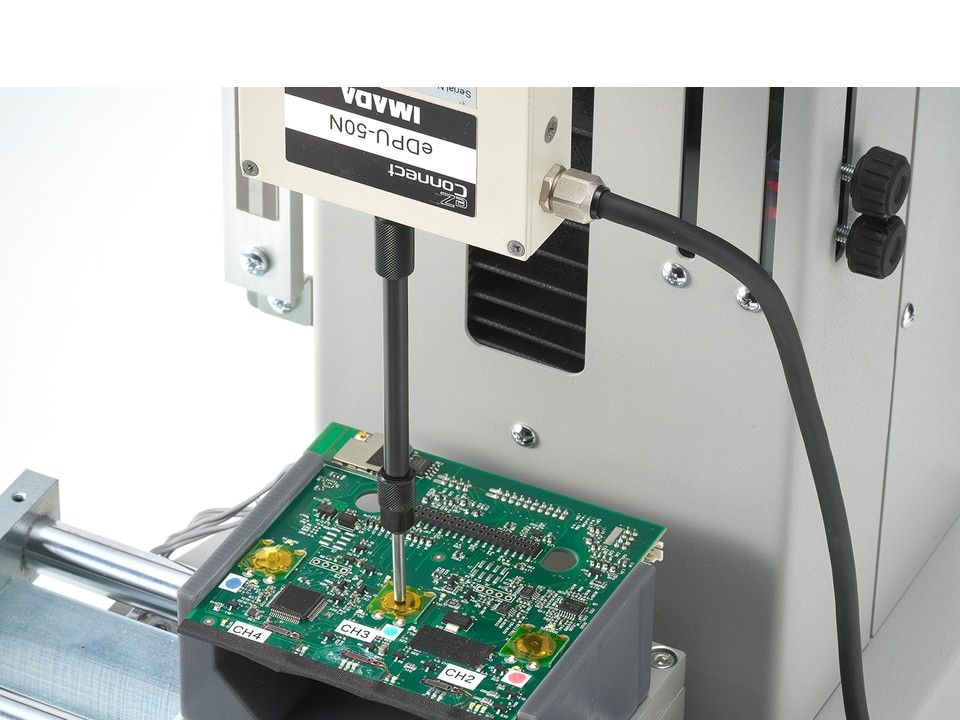

FSA-Q-0.5KE-50N Testing image FSA-Q-0.5KE-50N Testing image

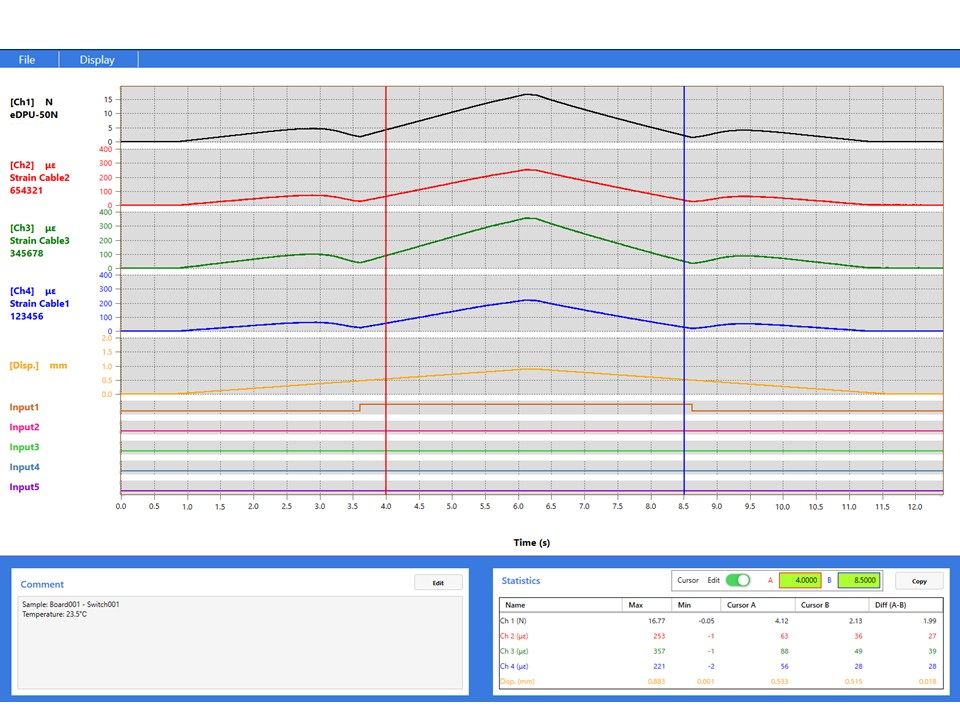

Dedicated Software Quad Graph Drawer Dedicated Software Quad Graph Drawer

FSA-Q-0.5KE-50N

FSA-Q-0.5KE-50N Testing image

Dedicated Software Quad Graph Drawer

Bundles

Lo-Mid Force

Max 4 Connections

Multi Simul. Graphs

The FSA-Q series is a force-deformation evaluation Unit that simultaneously measures force, displacement, and strain (3 locations). By simultaneously measuring force, displacement, and strain, it is possible to evaluate the deformation of a sample caused by applying a force from a more multifaceted perspective. The selection of individual products is not required for this unit. (Strain gauge is sold separately.)

Feature

  • This Unit can measure force, strain, and displacement simultaneously. High-speed sampling (2000 Hz) is capable of following sudden changes in force and strain.
  • The motorized test stand with high rigidity enables accurate displacement measurement.
  • The PC-downloaded software displays real-time measurement values. Continuous data recording and time graph drawing are also available.
  • The software is available for download from IMADA Connected. (User registration and QSMA-400 product registration required .)
  • Various measurements can be practiced with optional attachments available (sold separately).
