Multiple Force-Time (Torque-Time) Graphing Software

Force Recorder Plus

Force Recorder Plus

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Software
  4. Force Recorder Plus

Description Add to favorites

Force Recorder Plus Graphing Image Force Recorder Plus Graphing Image

Force Recorder Plus CD Force Recorder Plus CD

Force Recorder Plus Graphing Image

Force Recorder Plus CD

Max 4 Connections

Multi Simul. Graphs

Overlaying Graphs

Force Recorder Plus is multiple force-time (torque-time) graphing software for ZTS/ZTA/eZT/FA Plus2/eFA Plus2/HTGS/HTGA/DTXS/DTXA series products. It can graph data of up to 4pcs of devices simultaneously and display them in different units (eg: force N and torque Nm) on the same window. Moreover, it equips "Operation history tracking" and "Password protection function" for security.

Feature

  • Offers space-saving and cost-saving solution for simultaneous data graphing of multiple devices (up to 4 pcs)
  • Records/displays graphs in different units (eg: force N and torque Nm) on the same window for easy data record and analysis of different types force
  • Up to 10 graphs can be overlaid for visual analysis
  • Operation history tracking and password protection functions possible for security
  • Equips various editing functions such as trigger function for automatic recording and graphing, graph overlaying, shift graph line, capture function

User Guide Videos

Setting

Install the Software

Setting

Edit the Recorded Graph

Setting

Print/Export Data

Setting

Open/Edit Files, Convert into z3a Files

Setting

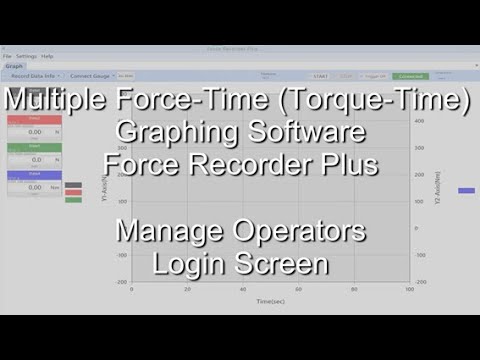

Manage Operator/Login Screen

Setting

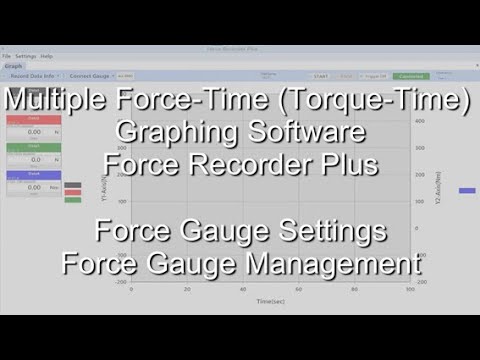

Force Gauge Settings/Management

Setting

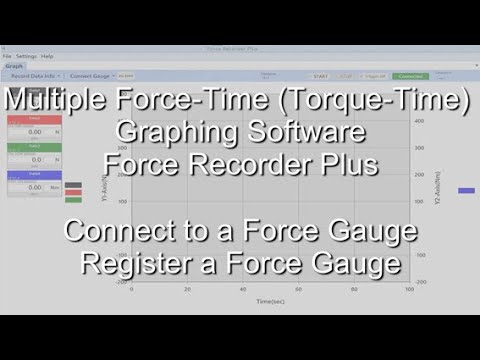

Connect/Register a Force Gauge

DataRecord

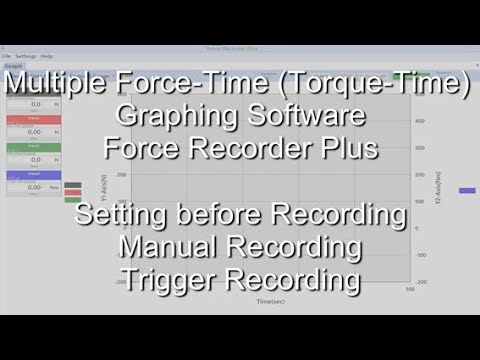

Manual/Trigger Recording
