Automatic Crimp Pull Tester

ACT-1000N

ACT-1000N

Description Relevant Information and Materials Relevant Products Measurement Example Videos User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Automatic Wire Crimp Pull Testers
  4. ACT-1000N

Description Add to favorites

ACT-1000N ACT-1000N

ACT-1000N

Motorized Tester

Crimp Terminal Tension

Single Touch

Break & Keep Mode

Multi Test Conditions

Incl Software

Mid-Lo Force

ACT-1000N is an automatic crimp tester with 1000N capacity. The device can easily perform strength testing of crimp terminals just by pressing the bottun so that it reduces the time and effort required for wire harness testing.

Feature

  • Improves test efficiency with one-button operation, providing smooth flow from testing to data saving including OK/NG (pass/fail) judgement
  • 2 modes selectable: BREAK mode for destructive test and KEEP mode for nondestructive test to apply specific force in set time
  • Capable of saving up to 26 test patterns, immediately recallable to suit various samples
  • Complies with the corresponding part of UL and JIS standards
  • Possible to measure the strength of round, rod, and ferrule terminals by using option attachements

Relevant Industrial Standards

UL 486A-486B [ 2013 ] [Standard for Safety for Wire Connectors,9.3.4 Pullout test] (corresponding part only)

JIS C 2805 [ 2010 ] [Crimp-type terminal lugs for copper conductors] (corresponding part only)

JIS C 5402-16-4 [ 2012 ] [Connectors for electronic equipment-Tests and measurement-Part 16-4: Mechanical tests on contacts and terminations-Test 16d: Tensile strength (crimped connections)] (corresponding part only)

User Guide Videos

Setting

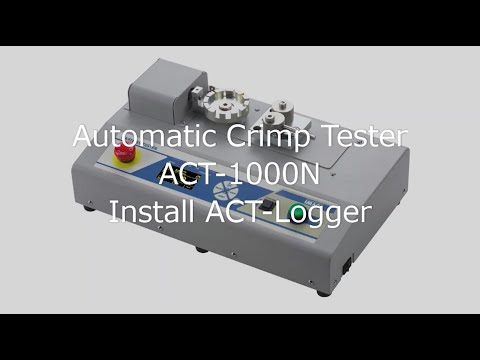

Install ACT-Logger

Setting

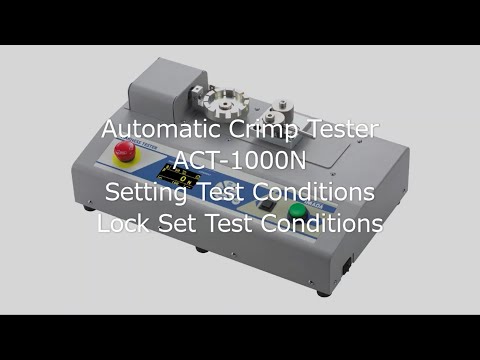

Set/Lock Test Conditions

Mounting

Mount Terminal Fixture/Change Direction of Wire Fixture

Measurement

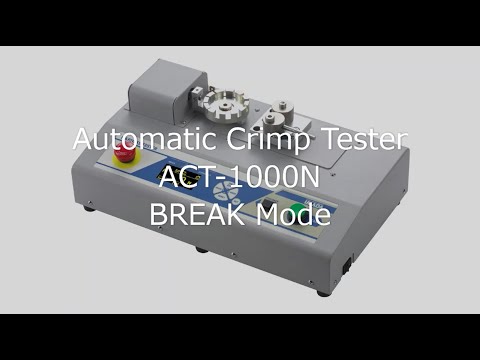

BREAK Mode

Measurement

KEEP Mode

Data Record

Internal Memory, ACT-Logger, Print by RS-232C Printer

Mounting

Install Jig for Ferrule Terminal ACT-T-03S/L
