Description Add to favorites
Inquiry No.1T064
Inquiry No.1T064
Cautions
We will create design proposals and quotations tailored to your specific requirements. Please feel free to contact us to discuss your needs. Kindly note that, unlike standard products, there is no fixed price, so we will provide a price estimate through our distributor after finalizing the specifications.

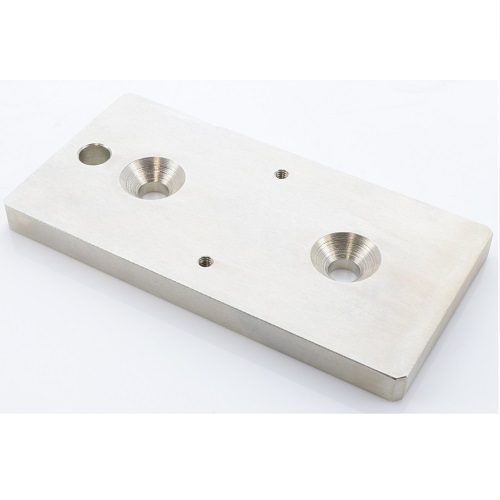

Set of attachments to measure break strength of lipsticks or lip balms, consisting of a fixture for versatile vertical stands to equip with the stick holder of FRTS, our texture analyzer, and an upper jig with a suitable form to compress stick-form samples.
Feature
- Set of attachments consisting of a fixture to install FR-ST-25, a stick holder to MX2, and an upper jig
- FR-ST-25 is a jig for FRTS, a texture analyzer, but can be installable for MX2 series, motorized vertical stands, with this customized fixture
- The test precision is secured with the vertical force applied with the round-edged jig from above
- FR-ST-25 is not included in this set
