Inquiry No.1T059

【Custom Made】Attachments to measure forces to open flat pack carton

Attachments to measure forces to open flat pack carton

Description Relevant Information and Materials Relevant Products Measurement Example Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Particular Samples Measurements
  4. Attachments to measure forces to open flat pack carton

Description Add to favorites

Inquiry No.1T059 Test System Image Inquiry No.1T059 Test System Image

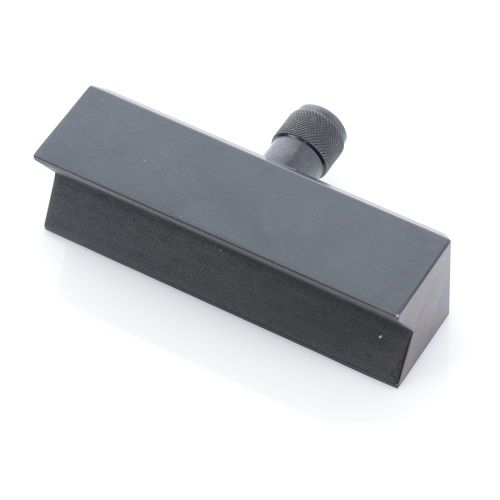

Inquiry No.1T059 Upper Part Inquiry No.1T059 Upper Part

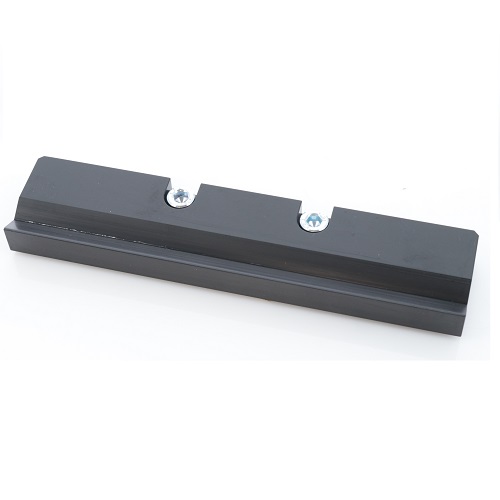

Inquiry No.1T059 Lower Part Inquiry No.1T059 Lower Part

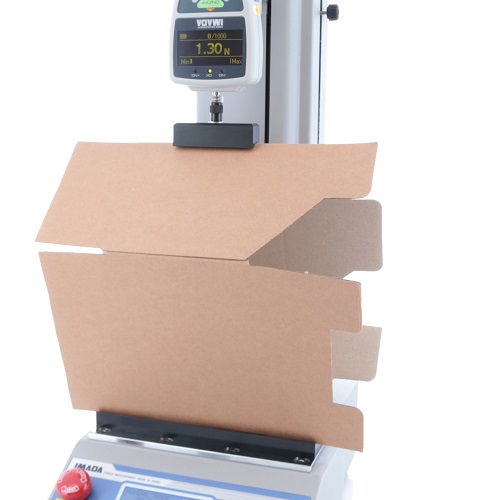

Inquiry No.1T059 Test Image Inquiry No.1T059 Test Image

Inquiry No.1T059 Test System Image

Inquiry No.1T059 Upper Part

Inquiry No.1T059 Lower Part

Inquiry No.1T059 Test Image

Cautions

We will create design proposals and quotations tailored to your specific requirements. Please feel free to contact us to discuss your needs. Kindly note that, unlike standard products, there is no fixed price, so we will provide a price estimate through our distributor after finalizing the specifications.


Measure the force to open flat pack cartons by a carton former. If you have a test stand and a force gauge, you can conduct several kinds of measurement on corrugated cardboard only by changing attachment.

Feature

  • Both upper and lower attachments have groove where corrugated cardboards are held to open
  • Enable to hold corrugated cardboards with various sizes by moving force gauges
  • Designed to check how hard the corrugated cardboards are to open
  • Optional software can draw graphs of force value over time for your analysis
