【Custom Made】Attachments for score bend test

Attachments for score bend test

Description Relevant Information and Materials Relevant Products Measurement Example Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Standards-Compliant Measurement
  4. Attachments for score bend test

Description Add to favorites

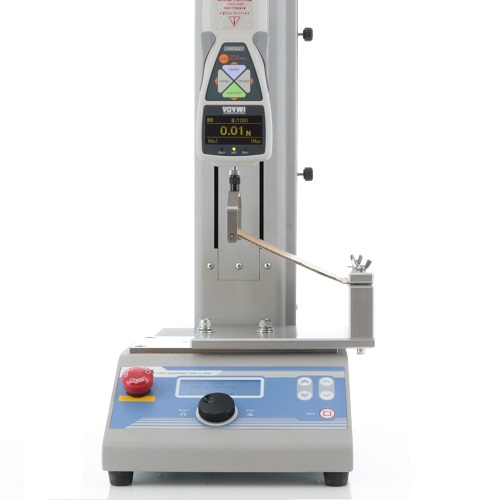

Inquiry No.1T058 Test System Image Inquiry No.1T058 Test System Image

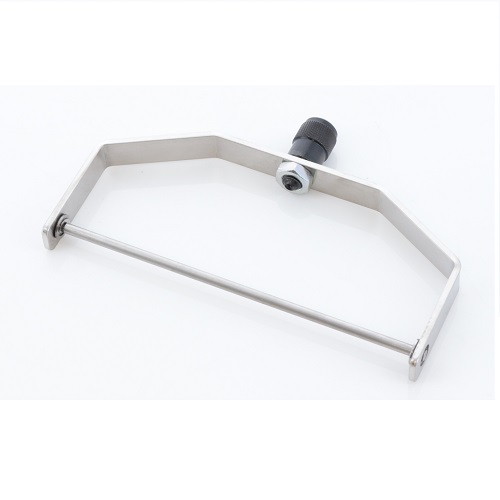

Inquiry No.1T058 Upper Part Inquiry No.1T058 Upper Part

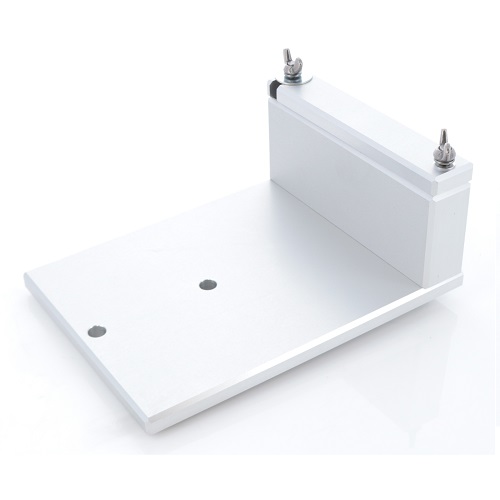

Inquiry No.1T058 Lower Part Inquiry No.1T058 Lower Part

Inquiry No.1T058 Test Image Inquiry No.1T058 Test Image

Inquiry No.1T058 Test System Image

Inquiry No.1T058 Upper Part

Inquiry No.1T058 Lower Part

Inquiry No.1T058 Test Image

Cautions

We will create design proposals and quotations tailored to your specific requirements. Please feel free to contact us to discuss your needs. Kindly note that, unlike standard products, there is no fixed price, so we will provide a price estimate through our distributor after finalizing the specifications.


Measure the force to bend corrugated cardboard at its score. This measurement complies with JCS T0001:2000.

Feature

  • Consisted of the upper attachment for a force gauge and the lower attachment for a stand
  • The upper attachment lifts corrugated cardboard till it gets bent and measure its force
  • Complying with JCS T0001:2000
  • Optional software can draw graphs of force value over time for your analysis

Relevant Industrial Standards

JCS T0001 [ 2000 ] [Corrugated fibreboard-Determination of bending for score and crease]
