Inquiry No.1T042
【Custom Made】Tension Calibration Plate
- Force Measurement IMADA
- PRODUCTS
- In-house Calibration
- Tension Calibration Plate
Description Add to favorites
Inquiry No.1T042 Calibration Plate

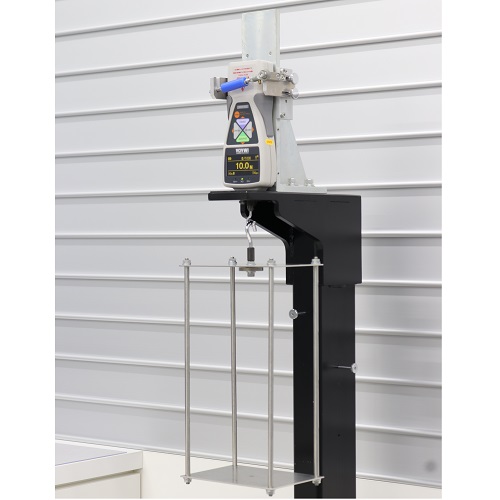

Inquiry No.1T042 Calibration Image
Cautions
We will create design proposals and quotations tailored to your specific requirements. Please feel free to contact us to discuss your needs. Kindly note that, unlike standard products, there is no fixed price, so we will provide a price estimate through our distributor after finalizing the specifications.
IMADA offers calibration plate to calibrate the tension load of IMADA force gauges. It can also be used with the compression jig for calibration of compression load. This calibration plate with low error is designed to put on the weight and be also used as a weight. For instance, the error of 5N plate is ±0.00074N. It can be utilized for daily check and in-house calibrations.
Feature
- Designed to calibrate tension load or compression load (compression calibration jig required) of IMADA force gauges
- Utilized for daily check and in-house calibration (weight is not included)
- 5N, 10N, 20N and 50N available. Contact us if you need other type
- This plate with low error designed to put on the weight and be also used as a weight
- Performs calibration on the calibration stand (recommend)
